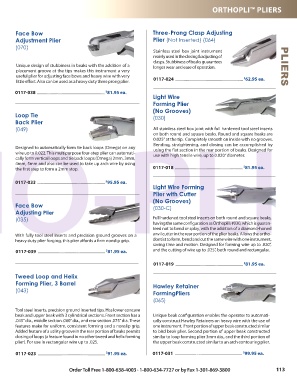

Page 113 - 2017_OSE_Flipbook

ORTHOPLI™ PLIERS

Face Bow Three-Prong Clasp Adjusting
Adjustment Plier Plier (Not Inserted) (064)
(070)
Stainless steel box joint instrument
mainly used in the closing & adjusting of
clasps. Stubbiness of beaks guarantees
Unique design of stubbiness in beaks with the addition of a longer wear and ease of operation. PLIERS
placement groove at the tips makes this instrument a very
useful plier for adjusting face bows and heavy wire with very $
little effort. Also can be used as a heavy duty three prong plier. 0117-024 ................................................................... 62.95 ea.

0117-038 ................................................................... 81.95 ea.
$
Light Wire
Forming Plier
(No Grooves)
Loop Tie (030)
ORTHO-PLI
Back Plier
(049) All stainless steel box joint with full hardened tool steel inserts
on both round and square beaks. Round and square beaks are
0.025” at the tip. Completely smooth on inside with no grooves.
Bending, straightening, and closing can be accomplished by
Designed to automatically form tie back loops (Omega) on any using the flat section in the rear portion of beaks. Designed for
wire up to 0.022. This multipurpose four-step plier can automati- use with high tensile wire, up to 0.020” diameter.
cally form vertical loops and tie back loops (Omega) 2mm, 3mm,
4mm, 5mm and also can be used to take up arch wire by using
$
the first step to form a 2mm stop. 0117-018 ................................................................... 81.95 ea.

0117-033 ................................................................... 95.95 ea.
$
Light Wire Forming
Plier with Cutter
(No Grooves)
Face Bow (030-C)
Adjusting Plier
(035) Full hardened tool steel inserts on both round and square beaks,
having the same configuration as Orthopli’s #030, which is guaran-
teed not to bend or splay, with the addition of a diamond-honed
With fully tool steel inserts and precision ground grooves on a anvil cutter in the rear portion of the plier beaks. Allows the ortho-
heavy duty plier forging, this plier affords a firm nonslip grip. dontist to form, bend and cut the same wire with one instrument,
saving time and motion. Designed for forming wire up to .020”,
0117-039 ................................................................... 81.95 ea. and the cutting of wire up to .025”, both round and rectangular.
$
0117-019 ................................................................... 81.95 ea.
$
Tweed Loop and Helix
Forming Plier, 3 Barrel Hawley Retainer
(043) FormingPliers
(065)

Tool steel inserts, precision ground inserted tips. Has lower concave
beak and upper beak with 3 cylindrical sections. Front section has a Unique beak configuration enables the operator to automati-
.045” dia., middle section .060” dia., and rear section .075” dia. These cally construct Hawley Retainers on heavy wire with the use of
features make for uniform, consistent forming and a nonslip grip. one instrument. Front portion of upper beak constructed similar
Added feature of a utility groove in the rear portion of beaks permits to bird beak plier. Second portion of upper beak constructed
closing of loops (a feature found in no other tweed and helix forming similar to loop forming plier 3mm dia., and the third portion of
plier). For use in rectangular wire up to .025. the upper beak constructed similar to an arch contouring plier.

$
0117-023 ................................................................... 91.95 ea. 0117-031 ................................................................... 99.95 ea.
$
Order Toll Free 1-800-638-4003 · 1-800-634-7727 or by Fax 1-301-869-3800 113
