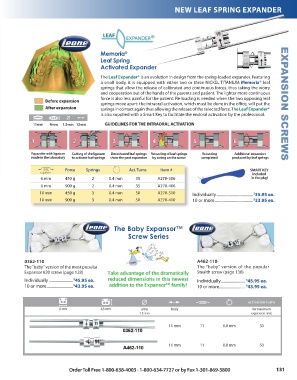

Page 131 - 2017_OSE_Flipbook

NEW LEAF SPRING EXPANDER

Memoria
®
Leaf Spring
Activated Expander

The Leaf Expander® is an evolution in design from the spring-loaded expander. Featuring
a small body, it is equipped with either two or three NICKEL TITANIUM Memoria® leaf
springs that allow the release of calibrated and continuous forces, thus taking the worry
and cooperation out of the hands of the parents and patient. The lighter more continuous
force is also less painful for the patient. Re-loading is needed when the two opposing leaf
Before expansion springs move apart: the intraoral activation, which must be done in the office, will put the EXPANSION SCREWS
After expansion springs in contact again thus allowing the release of the selected force. The Leaf Expander®
is also supplied with a Smart Key to facilitate the endoral activation by the professional.

11mm 4mm 1.5mm 12mm GUIDELINES FOR THE INTRAORAL ACTIVATION

Expander with ligature Cutting of the ligature Deactivated leaf springs Reloading of leaf springs Reloading Additional expansion
made in the laboratory to activate leaf springs show the past expansion by acting on the screw completed produced by leaf springs

Force Springs Act. Turns Item # SMART KEY
included
6 mm 450 g 2 0.4 mm 35 A270-306 in the pkg!
6 mm 900 g 2 0.4 mm 35 A270-406
10 mm 450 g 3 0.4 mm 50 A270-310 Individually .................................... 35.95 ea.
$
10 mm 900 g 3 0.4 mm 50 A270-410 10 or more ...................................... 33.95 ea.
$

The Baby Expansor™
Screw Series

0362-110 A462-110
The “baby” version of the most popular The “baby” version of the popular
Expansor 620 screw (page 128) Stealth screw (page 130)
Individually ........................ 45.95 ea. Individually ........................ 45.95 ea.
$
$
10 or more .......................... 43.95 ea. 10 or more .......................... 43.95 ea.
$
$

Order Toll Free 1-800-638-4003 · 1-800-634-7727 or by Fax 1-301-869-3800 131
