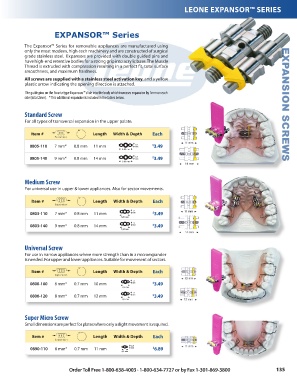

Page 135 - 2017_OSE_Flipbook
P. 135
LEONE EXPANSOR™ SERIES
EXPANSOR™ Series
The Expansor™ Series for removable appliances are manufactured using
only the most modern, high-tech machinery and are constructed of surgical
grade stainless steel. Expansors are provided with double guided pins and
have high-end retentive bodies for a strong grip into acrylic base. The Muscle
Thread is extruded with compression resulting in a perfect fit, total surface
smoothness, and maximum hardness.
All screws are supplied with a stainless steel activation key, and a yellow
plastic arrow indicating the opening direction is attached.
The guide pins on the Swartz type Expansors™ slide into the body which increases expansion by 1mm on each
side (total 2mm). * This additional expansion is included in the tables below. EXPANSION SCREWS
Standard Screw
For all types of transversal expansion in the upper palate.
Item # Length Width & Depth Each
0805-110 7 mm* 0.8 mm 11 mm $ 3.49
0805-140 9 mm* 0.8 mm 14 mm $ 3.49
Medium Screw
For universal use in upper & lower appliances. Also for sector movements.
Item # Length Width & Depth Each
0803-110 7 mm* 0.8 mm 11 mm $ 3.49
0803-140 9 mm* 0.8 mm 14 mm $ 3.49
Universal Screw
For use in narrow appliances where more strength than in a microexpander
is needed. For upper and lower appliances. Suitable for movement of sectors.
Item # Length Width & Depth Each
0800-100 6 mm* 0.7 mm 10 mm $ 3.49
0800-120 8 mm* 0.7 mm 12 mm $ 3.49
Super Micro Screw
Small dimensions are perfect for plates where only a slight movement is required.
Item # Length Width & Depth Each
0890-110 6 mm* 0.7 mm 11 mm $ 6.89
Order Toll Free 1-800-638-4003 · 1-800-634-7727 or by Fax 1-301-869-3800 135
